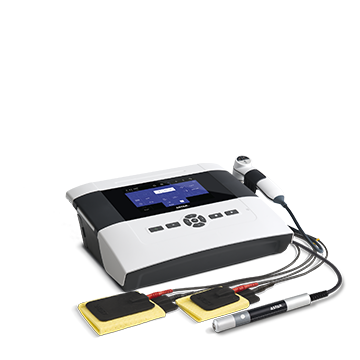

PhysioGo 300A

Electrotherapy

electrotherapy and ultrasound therapy unit



PhysioGo 300A

As many as 3 independent treatment channels enable electrotherapy, ultrasound therapy and combined therapy procedures. The therapist can use an integrated encyclopedia and an extensive base of 204 preset treatment programs and 38 treatment sequences which means combination of several currents in one procedure.
The device enables determination of the l/t curve and the electrode test.

ERGONOMICS
• three completely independent treatment channels
• operation mode: program / manual
• preset treatment program and sequence base
• statistics
• encyclopedia with treatment methodology description
• treatment programs chosen by name or medical field
• concise list of favorite programs and sequences
• buzzer volume setting
• possibility of edition the names of user-defined programs and sequences
• self-test – systematic control of the unit
• 7” color touchscreen
• real time clock
• model PHG301A – battery unit



ELECTROTHERAPY
• operation in CC (stabilized output current) and CV (stabilized output voltage) modes
• electrodes test
• generation of unidirectional (unipolar) currents in interrupted mode
• complete galvanic isolation between channels in each mode
CURRENTS
– interferential (dynamic, isoplanar, one-channel (AMF))
– TENS (symmetric, asymmetric, alternating, burst)
– TENS to spastic paralysis therapy
– Kotz’ / Russian stimulation
– tonolysis
– diadynamic (MF, DF, CP, CP-ISO, LP)
– pulse – rectangular, triangular
– Trabert pulse, Leduc’ pulse
– unipolar sine surge
– galvanic
– microcurrents

ELECTRODIAGNOSTICS
• electrodiagnostics with graphic presentation of I/t curve
• automatic calculation of rheobase, chronaxie as well as accommodation coefficient
ULTRASOUND THERAPY
• operation frequency 1 MHz/3,5 MHz
• effective radiation area 1 cm2 and 4 cm2
• continuous emission – thermal effect
• pulse emission – micro massage effect
• ultrasound heads provided with the contact control connected to treatment timer
• precise control over the ultrasound wave emission during performed treatment
• head sensitivity calibration
• automatic control of emitted power

COMBINATION THERAPY
• operation in CC (stabilized output current) and CV (stabilized output voltage) modes
• operation frequency 1 MHz/3,5 MHz
• effective radiation area 1 cm2 and 4 cm2
• continuous emission – thermal effect
• pulse emission – micro massage effect
• ultrasound heads provided with the contact control connected to treatment timer
• precise control over the ultrasound wave emission during performed treatment
• head sensitivity calibration
• automatic control of emitted power
CURRENTS
– interferential (dynamic, isoplanar, one-channel (AMF))
– TENS (symmetric, asymmetric, alternating, burst)
– Kotz’ / Russian stimulation\

MANUAL MODE
complete control over parameters for advanced users
TREATMENT PROGRAMS
• 204 preset treatment programs
• 150 user-defined programs
• 204 favorite programs
TREATMENT SEQUENCES
• 38 preset treatment sequences for electrotherapy
• 10 user-defined sequences for electrotherapy

TECHNICAL SPECIFICATION
• controller – max constant current in patient’s circuit (CC mode)
– galvanic 40 mA
– diadynamic, pulse 60 mA
– interferential, Kotz, unipolar sine surge 100 mA
– TENS 140 mA
– tonololysis 100 mA
– microcurrents 1000 μA
• max voltage in patient’s circuit (CV mode) 140 V
• max ultrasound wave intensity in continuous / pulse mode 2 / 3 W/cm2
• pulse frequency 16 Hz, 48 Hz, 100 Hz
• duty factor for pulse mode 5 – 75 %, step 5 %
• mains supply 230 V, 50/60 Hz, max 75W, 90VA
• dimensions 34 x 28 x 11‐16 cm
• weight 6 kg

STANDARD ACCESSORIES
• ultrasound head 1/ 3,5 MHz, 4 cm2 with holder
• mains cable
• patient’s cable (2 pcs)
• electrotherapy electrodes 6 x 6 cm (4 pcs); 7,5 x 9 cm (2 pcs)
• viscose electrode covers 6 x 6 cm (8 pcs); 7,5 x 9 cm (4 pcs)
• velcro fixing belts 40 x 10 cm (2 pcs); 100 x 10 cm (2 pcs)
• gel 500 g (1 pc)
• spare fuses WTA-T1 A/250 V (2 pcs)
• touchscreen stylus pen (1 pcs)
• touchscreen cleaning cloth (1 pcs)
• masking covers with cutout (2 pcs)

OPTIONAL ACCESSORIES
• disposable self-adhesive electrodes 3 x 4 cm; 5,5 x 5,5 cm; 5,5 x 12,5 cm
• point electrodes 6 mm, 10 mm, 15 mm, 20 mm
• crocodile clip
• sand-filled bag 21 x 14 cm, 21 x 28 cm
• ultrasound head 1/ 3,5 MHz, 1 cm2 with holder
• patient’s stop switch
• bag for the unit and accessories
• Elf X trolley
• battery
