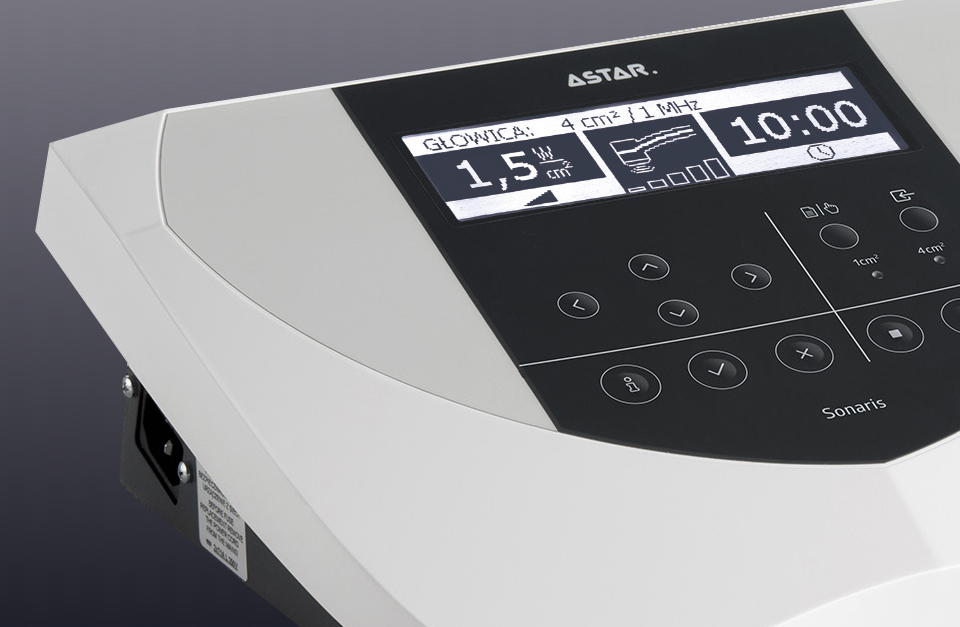

Sonaris S

Ultrasound Therapy

 ultrasound therapy and phonophoresis treatments

Sonaris is a modern device designed to carry out ultrasound
therapy and phonophoresis treatments. In combination
with electrostimulator it is possible to perform the combination
therapy.
The qualities that set the device apart are sophisticated
design, functionality, ergonomics and the high quality of
workmanship.
The unit is available in two versions:
The S version works with two types of ultrasound heads:
• with effective radiation area 1 cm2 which generates
ultrasound wave with 1 MHz or 3,5 MHz frequency
• with effective radiation area 4 cm2 which generates
ultrasound wave with 1 MHz or 3,5 MHz frequency
The M version works with one ultrasound head with effective
radiation area 4 cm2 which generates ultrasound wave
with 1 MHz frequency.
Small dimensions and light weight of the unit make it easy
to transport and to work out of the dedicated position,
e.g. in the home healthcare environment.

 ERGONOMICS
• operation mode: program/manual
• easy-to-read display
• preset treatment programs
• edition of the user-defined programs
• treatment timer
• precise control of the ultrasound wave during the treatment
procedure
• comfort of operation – the unit does not stop the emission
when ultrasound absorption deteriorates for a moment,
e.g. in the bones area
STRUCTURE
• LCD display
• modern design
• heavy-duty and reliable keyboard
• calibration parameters saved in the head memory
• self-test – systematic control of the unit and heads

 ULTRASOUND THERAPY
• operating frequency 1 MHz/3,5 MHz
• effective radiation area 1 cm2 and 4 cm2
• continuous emission – thermal effect
• pulse emission – micro-massage
• ultrasound heads provided with contact control connected
to treatment timer
• stabilization of output power
MANUAL MODE
complete control over parameters for advanced users
TREATMENT PROGRAMS
• simplification of the unit operation
• treatment programs chosen by name
• 52 programs for the ultrasound therapy
(M version – 42 programs)
• 10 user-defined programs

TECHNICAL SPECIFICATIONS
treatment timer 1 – 30 min.
mains supply 230 V, 50 Hz, 40 W
unit dimensions (without holders) 30x23x11 cm
weight 3 kg
operation mode of the ultrasound generator: continuous, pulse
pulse frequency 16 Hz, 48 Hz, 100 Hz
duty factor for pulse mode 10 %, 25 %, 50 %, 75 %
ULTRASOUND HEAD
GS4-type acoustic operating frequency 1 and 3,5 MHz
ERA 4 cm2, maximum power 10 W
max. power density 2,5 W/cm2
GS1-type acoustic operating frequency 1 and 3,5 MHz
ERA 1 cm2, maximum power 2,5 W
max. power density 2,5 W/cm2
GM-type acoustic operating frequency 1 MHz
ERA 4 cm2, maximum power 10 W
max. power density 2,5 W/cm2

STANDARD ACCESSORIESS
• mains cable
• M-version – GM head with holder
• ultrasound gel 500 g
• user guide
OPTIONAL ACCESSORIESS
• S-version – GS4 head with holder
• S-version – GS1 head with holder
• combination therapy cable
• bag for the unit and accessories
• VERSA trolley
